Assemblies

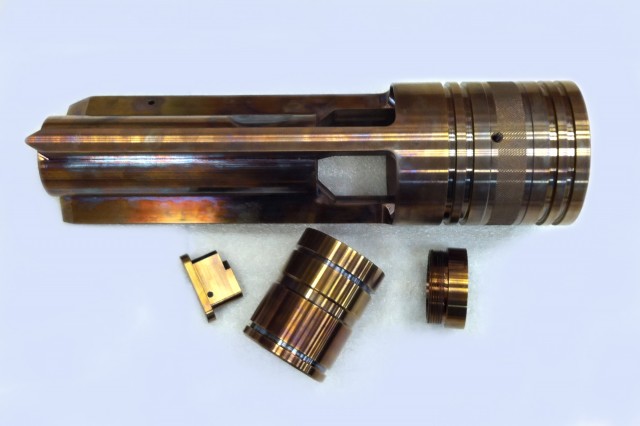

AS-1000

Large Muleshoe Assembly 6-1/2"( 17-4 HT )

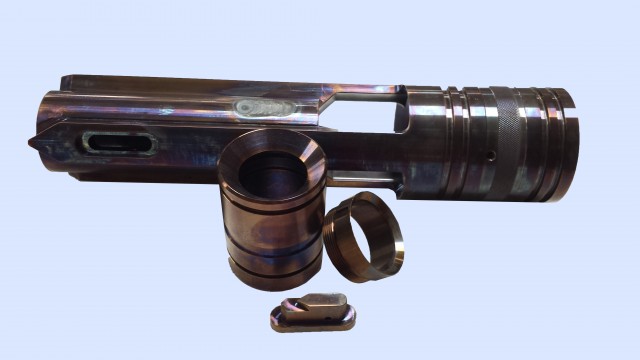

AS -1001

Medium Muleshoe Assembly 4-3/4"( 17-4 HT )

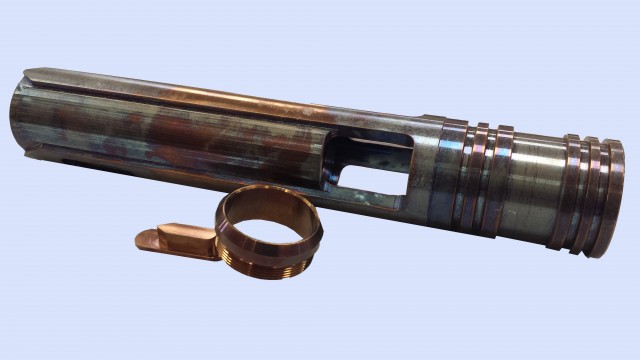

AS-1001-01

Small Muleshoe Assembly 3-1/2"( 17-4 HT )

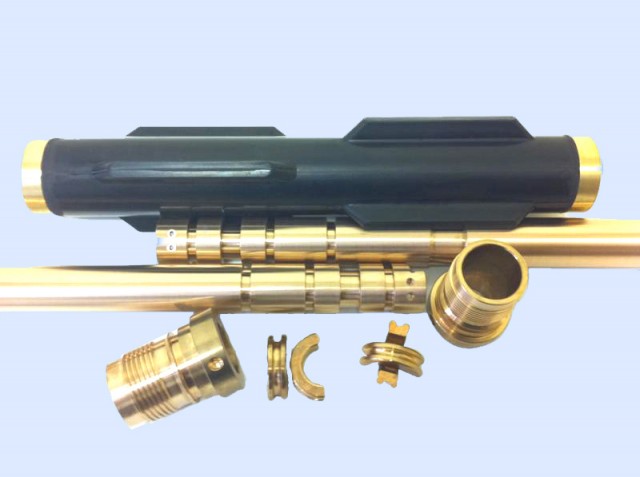

AS -1002

Interconnect Shaft Assembly ( BeCu ) Wired

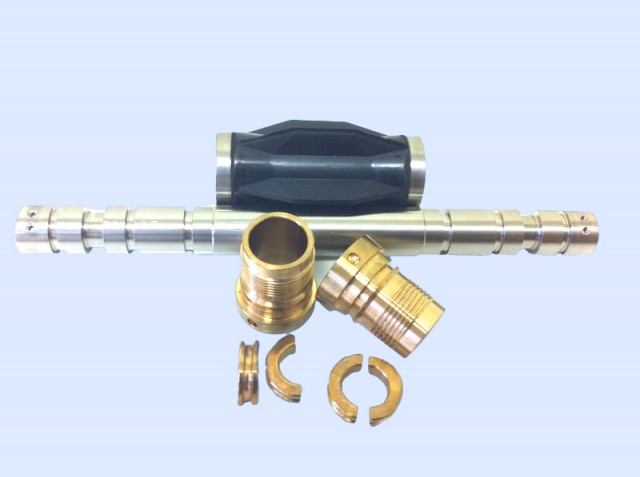

AS-1003

Short Interconnect Shaft Assembly ( Nit 50 ) Wired

Tensor

PM-200

Large Muleshoe Sleeve 6-1/2†(17-4 HT)

PM-201

Medium Muleshoe Sleeve 4 3/4†(17-4 HT)

PM-201-01

Small Muleshoe Sleeve (17-4)

PM-202

Bottom Sleeve (17-4 HT)

PM-203-01

Wear Cuff with out slot ( 17-4 HT )

Blue Star Style

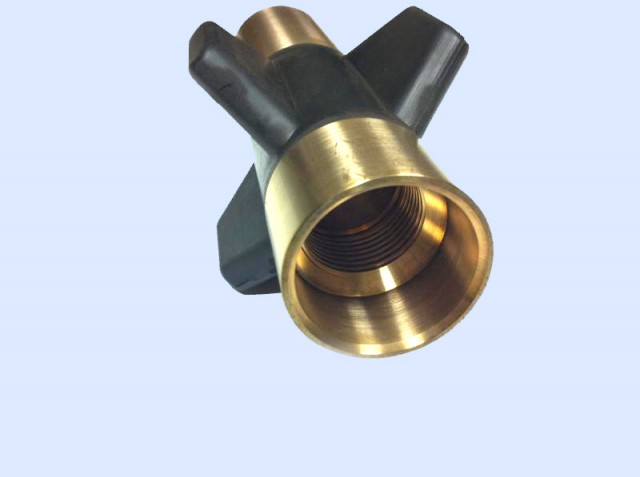

PM-100

Barrel End Fin ( BS Style )( BeCu )

PM-102

Screen Housing ( BS Style )( BeCu )

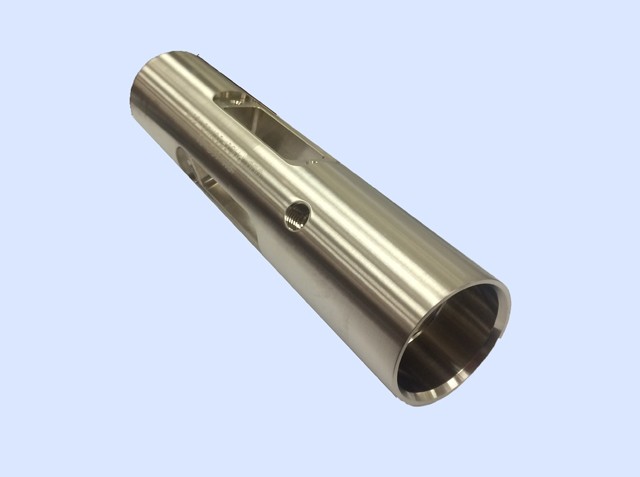

PM-102-01

Screen Housing (BS Style)(Tough Met)

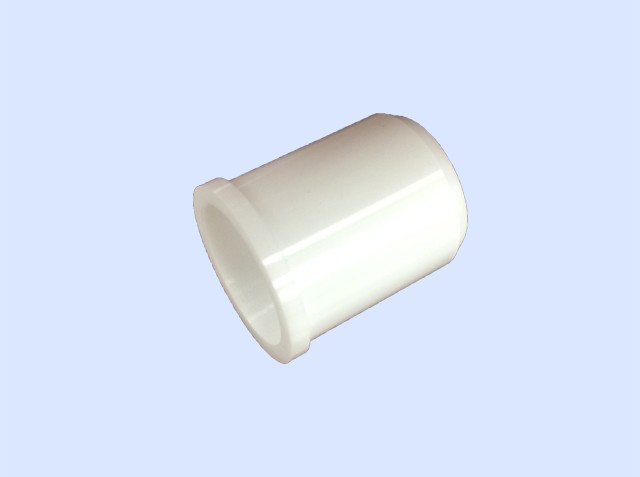

PM-102-02

Orifice for Screen Housing (Ceramic)

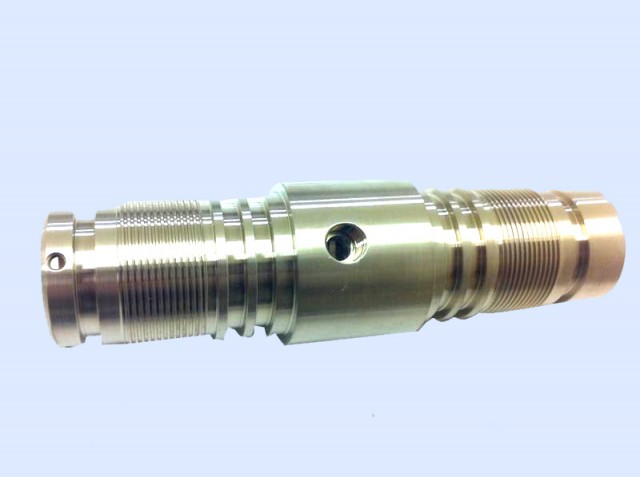

PM-103

Transition Housing ( BS Style )( Tough Met )

Pipe Screen

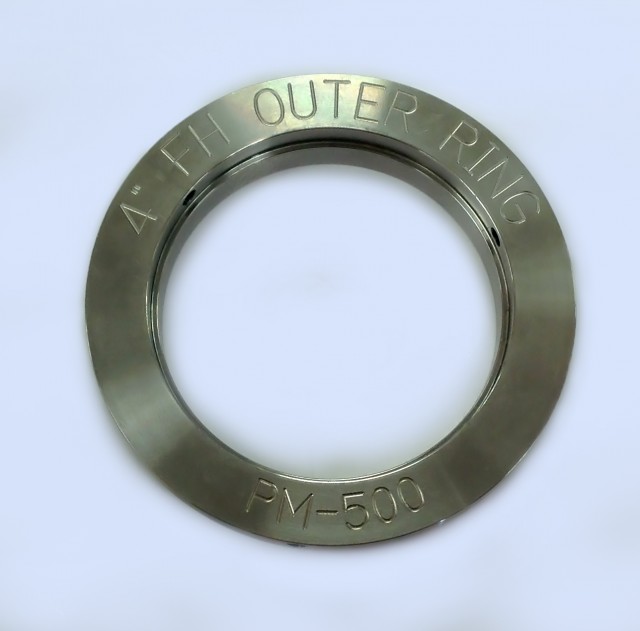

PM-500

4†FH Outer Ring

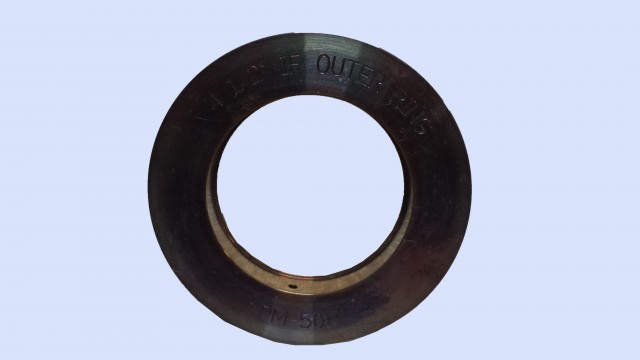

PM-501

4 1/2†IF Outer Ring

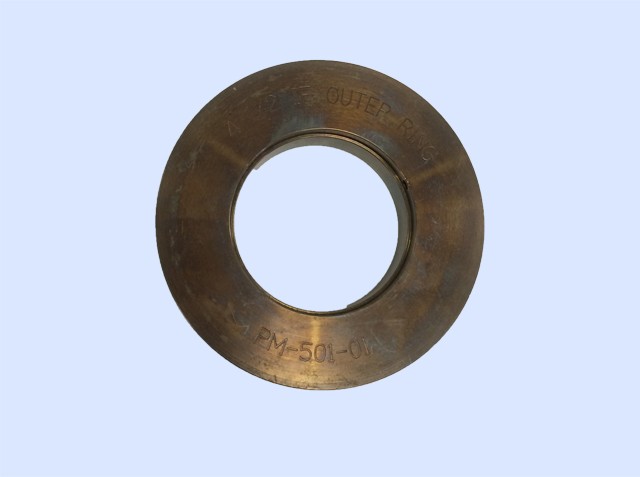

PM-501-01

4-1/2 IF Outer Ring (Small Slotted Screen Body 2.190" OD)

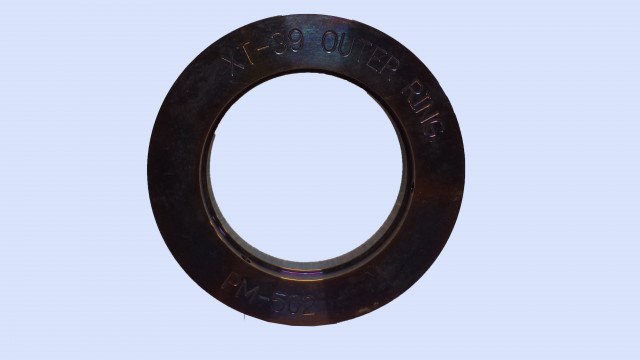

PM-502

XT-39 Outer Ring

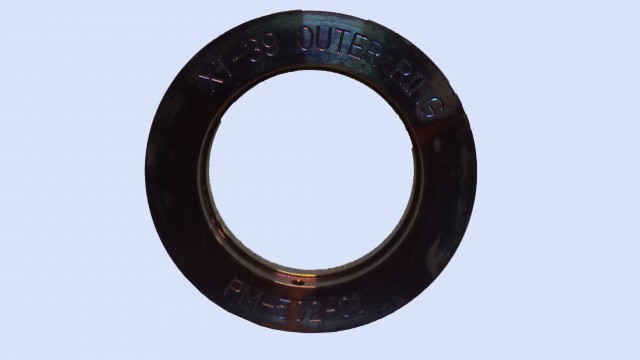

PM-502-01

XT-39 3/8" Outer Ring

Nitronic 50

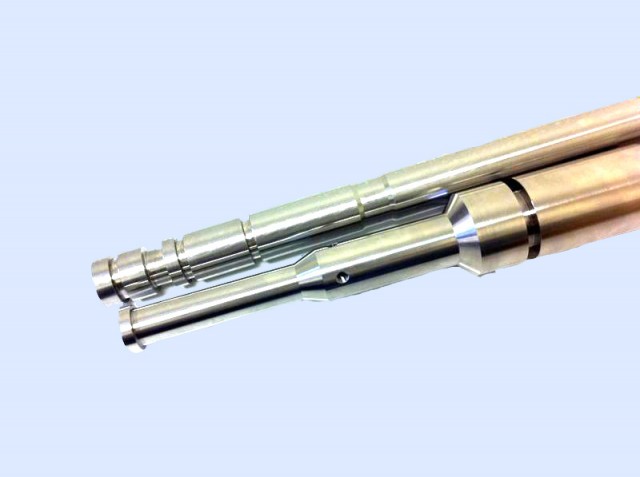

PM-600

All-in-one Spearpoint

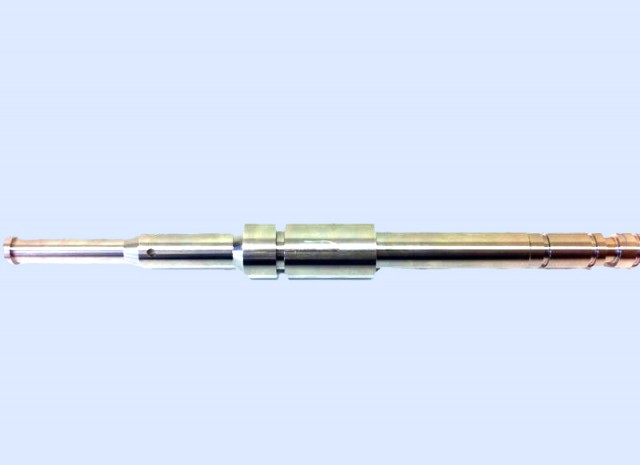

PM-601

Short Spearpoint

PM-601-01

Short Spearpoint (Nit 50) whalf moon

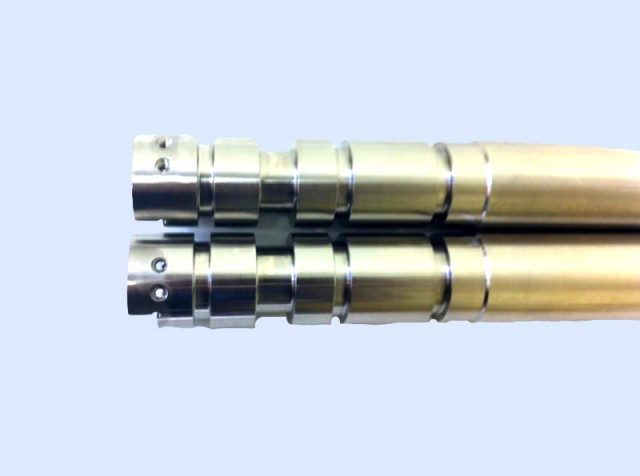

PM-602

Interconnect Shaft

PM-602-01

Interconnect Shaft - Wired (Nit 50)

Carbide & Ceramic

PM-700

3†Ceramic Sleeve (white)

PM-701

3" Nit 50 Sleeve

PM-702

2†Ceramic Sleeve (white)

PM-703

Ceramic Orifice

PM-705

Carbide Orifice

Float Valve

PM-802

2F-3R Float Valve (Model F) (Casted) (Also available with ported plunger)

PM-804

3.5IF Float Valve (Model F) (Casted) (Also available with ported plunger)

PM-805

4R Float Valve (Model F) (Casted) (Also available with ported plunger)

PM-808

5F-6R Float Valve (Model F) (Casted) (Also available with ported plunger)

PM-825

3 1/2" IF Baffle Plate

Electrical Component

PM-400

3pcs Battery Snubber

PM-401

3pcs Electronic Snubber

PM-402

Snubber Insert Set

PM-403

Breakout Box ( Battery Load and DePass )

PM-404

One Piece Battery Snubber

Running Gear

PM-300

Crossover 5/8†SR Box X 1 ¼â€-8R Pin

PM-301

Crossover 5/8†SR Pin X 1 ¼â€-8R Box

PM-301-01

Crossover 1 ¼â€-8R Box x 13/16†12R Box

PM-301-02

Crossover 1 ¼â€-8R Box x 1 ¼â€-8R Box (303)

PM-301-03

Crossover 1 ¼â€-8R Box x 5/8 SR Box

UBHO SUBS

PM-900

3-1/2" OD UBHO SUB STEEL with 2-7/8" PH-69 Connections 38" ( over all length )

PM-901

3-7/8" OD UBHO SUB STEEL With 2-7/8" AOH Connections 38" (over all length)

PM-902

4-3/4'' UBHO SUB STEEL Pin and Box 3 1/2" IF API Thread

PM-903

6 1/2'' UBHO SUB STEEL Pin and Box 4 1/2" XH API Thread (used for large muleshoe)

PM-904

6-1/2" UBHO SUB STEEL Pin and Box 4 1/2" IF API Thread (used for large muleshoe)
